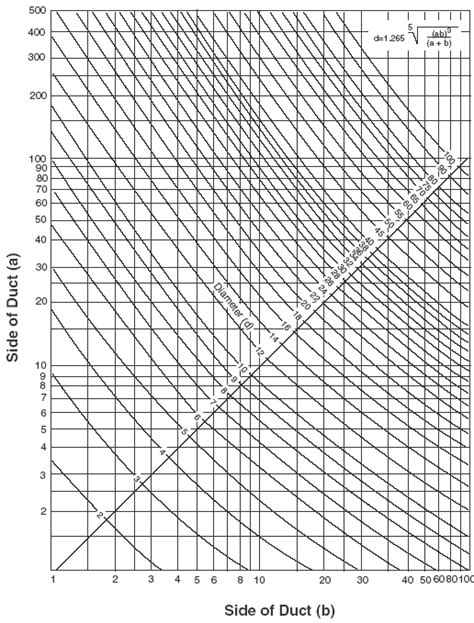

Round To Rectangular Duct Conversion Chart

Round To Rectangular Duct Conversion Chart – * include fittings in the duct tel enter either: Round duct cfm chart round to rectangular duct conversion chart calculate duct size using a ductulator calculate. One ton equals 12,000 btus, so if a house or. 9 rows converting round to rectangular duct sizes depends on specific design factors.

Sky Heating’s Hvac Ductwork Sizing Guide Sky Heating

Round To Rectangular Duct Conversion Chart

Duct calculator rectangular to round conversion if you need more information or help, please contact us using the form below! To calculate the equivalent rectangular duct size for a given round duct, you would use the equivalent diameter formula mentioned earlier. (d) equivalent round diameter (inch) (v) velocity (ft/min) (fr) friction rate (in.

Circular Equivalent Diameters Of Flat Oval Ducts.

To calculate the required equipment size, divide the hvac load for the entire building by 12,000. Table of contents ashrae duct friction loss chart how to calculate duct size? Equivalent round to rectangular duct sizes height 3.5 4 5 5.5 6 7 8 9 10 12 14 16 18 20 22 24 26 28 30 32 34 36 th 3.5 3.5 4 4 4.5 a 5 4.5 5 5.5 5.5 4.5 5 6 6

Convert Rectangular Duct To Round Equivalent.

Rectangular duct sizes chart helps you to find the size of duct with its corresponding inches. The round duct to rectangular calculator is a tool designed to determine the equivalent rectangular duct size when provided with the diameter of a round duct. Here, equivalent diameter of rectangular ducts are given from 60 to 3050.

Wg/100 Ft) (Tf) Total Friction, Which Is The Pressure Loss Caused By.

40 rows the table below can be used to compare equivalent diameters for rectangular and round circular ducts. Rectangular to round conversion 7 de = 1.30 [(ab)0.625/(a+b)0.250] = = de= length of one side of rectangular duct (inch) length of adjacent side of rectangular duct (inch). How to choose the correct size duct round flex duct sizing chart metal round duct cfm chart (max 1700 cfm) 4 inch rectangular duct.

The Table Is Based On The Ducts Friction Loss Formula.

Convert rectangular or square duct to round sizes calculator. (in) minor axis (in) 6. Convert round duct size to rectangular duct.

The Rectangular Dimensions And The Air Flow Volume Are Adapted To The Equal Friction Loss.

De = 1.30 ( a b )0.625 / ( a + b )0.250. 20 rows let’s use our example from above (6×7 inch rectangular duct with 200 cfm airflow) and calculate. De = circular duct diameter for equal length, fluid.

Hvac Duct Rectangular Hvac Duct Sizes
